Model NO. : PZ12V190B
Installation Method : Fixed
Stroke : Eight Stroke
Cooling Method : Oil Cooling
Output Type : AC Three Phase
Speed : Speed
Conditions of Use : Land Use
Usage : Standby Unit
Landuse Type of Unit : Ordinary
Excitation Mode : AC Rotating Exciter
Certification of Products : ISO9001
The Cylinder Diameter : 190
Arrangement of Cylinders : "V"
Land for Sale : The National

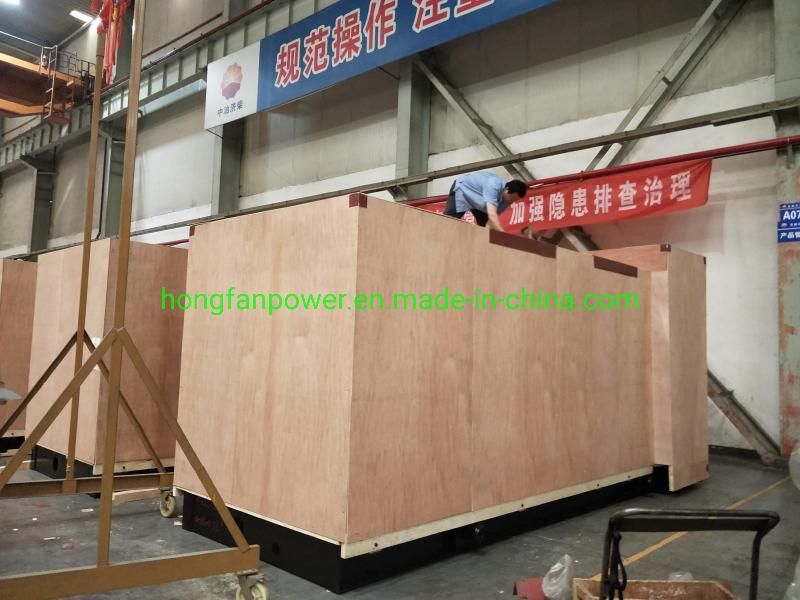

Transport Package : Export Wooden Case
Trademark : hongfan
Origin : Jinan, Shandong, China
HS Code : 8409999000
Production Capacity : 10000pieces/Year
Main technical parameters | |
Number and arrangement of cylinders | 12 (8) cylinders, 60° V arrangement |
type | Four stroke, water cooled, pressurized intercooled, direct injection combustion chamber |
Cylinder diameter | 190mm |
Piston stroke | 210mm |
Total piston displacement | 71.45(47.6)L |
Compression ratio | 14:01 |
turn | Counterclockwise (facing output) |
Starting mode | Gas motor or electric motor |
Lubrication mode | Pressure and splash lubrication |
![]() |
The Cylinder Diameter 190 Pz12V190b Oil Well Team Matching Machine of Drillling Equipment Images |
